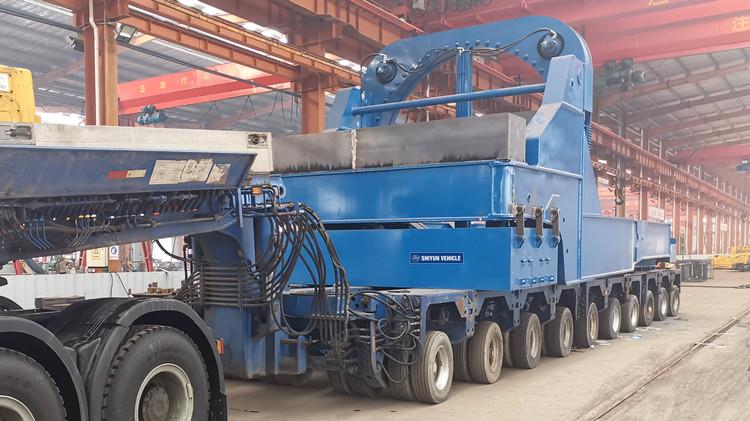

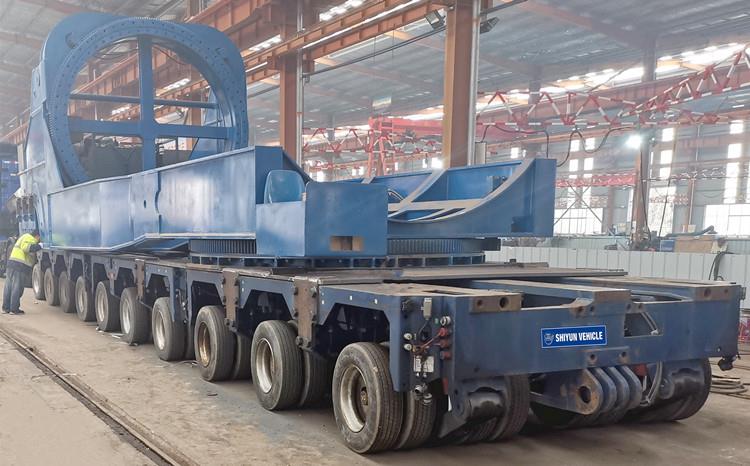

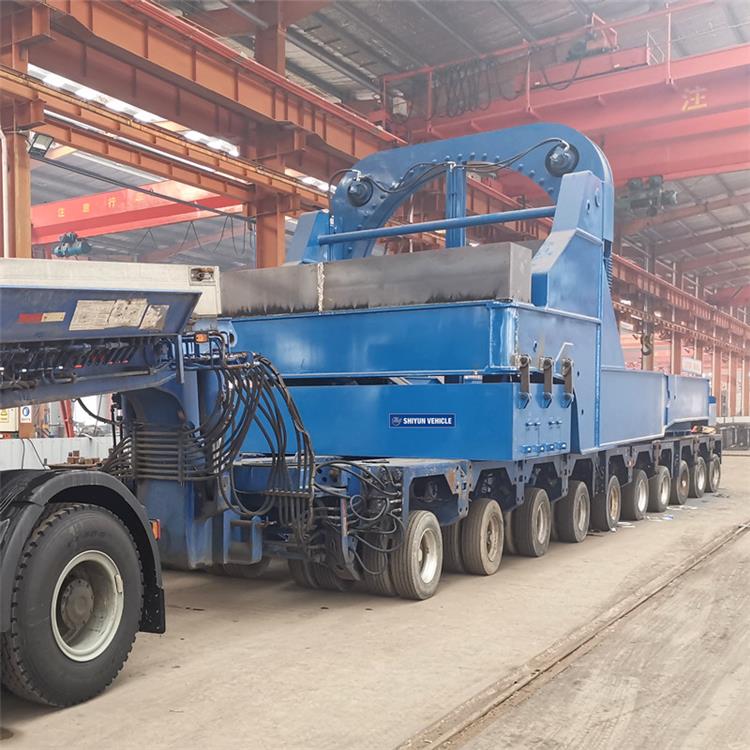

Windmill Blade Adapter with 10 Axle Modular Trailer can lift the wind turbine blades, it usually transport the wind turbine blades to the top of the mountain.
In the wind power industry, Shiyun vehicle mainly have wind power nacelle, wind turbine blades, wind tower section, etc. to complete industrial chain. Shiyun vehicle provide all types transportation solutions for the wide power industry use.
The Windmill Blade Adapter with 10 Axle Modular Trailer can raise, swing, and rotate the blades. It can avoid various obstacles such as trees, mountains, and wires on the way, effectively solve the problem of wind blade transportation in mountain areas, and directly grasp the wind blades by the hydraulic power station. In the case of high wind, the blades can rotate 360 degrees to avoid the wind, and participate in the balance through the counterweight to ensure transportation safety.
Windmill Blade Adapter with 10 Axle Modular Trailer for Sale - Shiyun Vehicle
Windmill Blade Adapter with 10 Axle Modular Trailer for Sale - Shiyun Vehicle
Brand: Shiyun Windmill Blade Adapter with 10 Axle Modular Trailer
Dimension: 19712mm*3000mm*5000mm
Applicable blade: 56-80m, 121-156 model windmill blades
Axis-line: 10 units
Max rotation angle: 360°
Lifting cylinder: cylinder diameter 280mm Lift angle 0-55
Gooseneck with an active platform: 1m
Hydraulic station: 31KW four-cylinder diesel engine
Landing gear: Front and rear hydraulic support cylinder
King pin: 2.00 or 3.5 inch bolt-in king pin
1. Max rotation angle of the rotor blade 360°
2. Max rotation angle of the platform 360°
3. Angle of inclination up to 60°
4. Radio remote control with display of wind speed, transverse gradient, blade position, ballast position
5. Wind blade adapter can combine with modular semi trailer and heavy duty low bed trailer.
6. The height of trailer platform can be 500mm to 1000mm
7. Self-balancing counterweight ensure the transport stability and safety
8. The suitable speed for complicated mountain roads: 20km/h
9. The maximum transport length of the blade is more than 75m
