Wind turbine blade lifter without trailer for windmill blade transport can lift the wind turbine blades, it usually transport the wind turbine blades to the top of the mountain.
In the wind power industry, Shiyun vehicle mainly have wind power nacelle, wind turbine blades, wind tower section, etc. to complete industrial chain. Shiyun vehicle provide all types transportation solutions for the wide power industry use.
This model is latest version of large hauling wind turbine blades, transport larger and heavier blades. transport 121-156 model blades. The special wind turbine blade lifter can lift the blades through hydraulic control and rotate itself 360 degrees during driving, avoiding various obstacles during transportation (mountain slopes, trees, houses, bridges, tunnels, etc.), which can greatly reduce the blades.
This model is a separate wind turbine blade lifter without trailer, you can match your own modular trailer

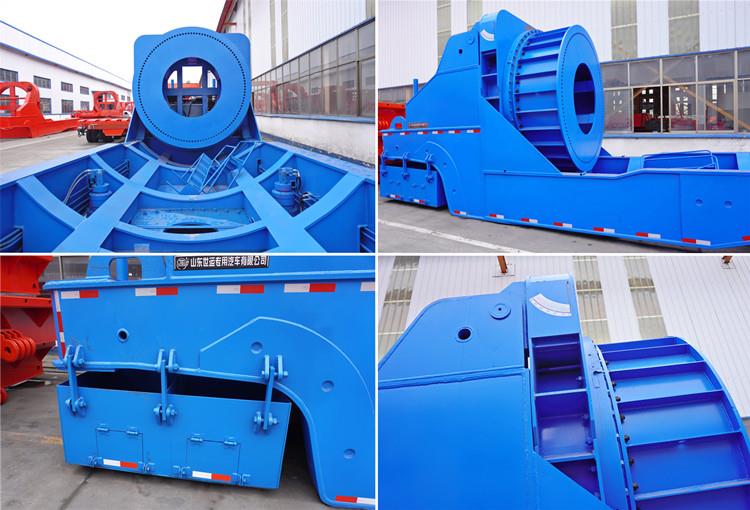

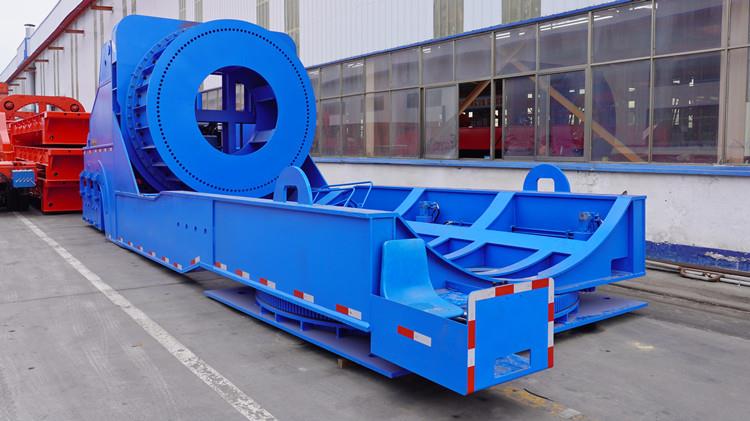

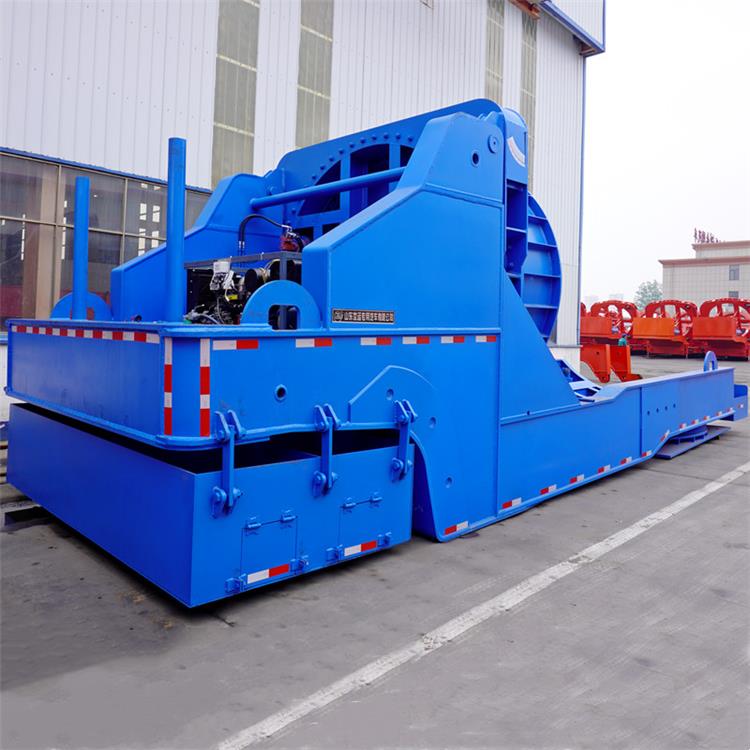

Wind Turbine Blade Lifter without Trailer for Sale - Shiyun Vehicle
Wind Turbine Blade Lifter without Trailer for Sale - Shiyun Vehicle
Brand: Shiyun Wind Turbine Blade Lifter without Trailer
Dimension: 11090mm*3700mm*5000mm
Applicable blade: 80m, 121-156 model windmill blades
Loading capacity: 23.5 Tons
Max rotation angle: 360°
Lifting cylinder: cylinder diameter 280mm Lift angle 0-55
Hydraulic station: 31KW four-cylinder diesel engine
1. Check the hydraulic oil, tooling hydraulic pipelines and hydraulic outrigger pipelines of the car plate
2. Check the tire pressure
3. Check whether the engine oil and water of the tooling engine are normal
4. Check whether the hydraulic system is normal
5. Check whether the bolts of the tooling rotary turntable are loose to ensure reliable tightening
