Wind turbine tower transport as an ECO and renewable energy will be more and more popular in the world. The wind tower transportation generation construction field is also prosperous in proportion. In the wind power industry, we mainly have wind power nacelle, wind turbine blades, wind tower section to complete the industrial chain. Shiyun provides all types of transportation solutions for the wide power industry use.\
There is no length limitation for transporting windmill tower sections. The length can be adjustable according to the wind tower length. The Axles are steering, it can be normal hydraulic steering or modular lifting steering.
There are two portions of this trailer: one is the adapter side with a gooseneck connect with the fifth wheel. The second one is the dolly trailer. Can transport oversized tanks diameters over than 5meters.
Wind Turbine Tower Transport for Sale - Shiyun Vehicle

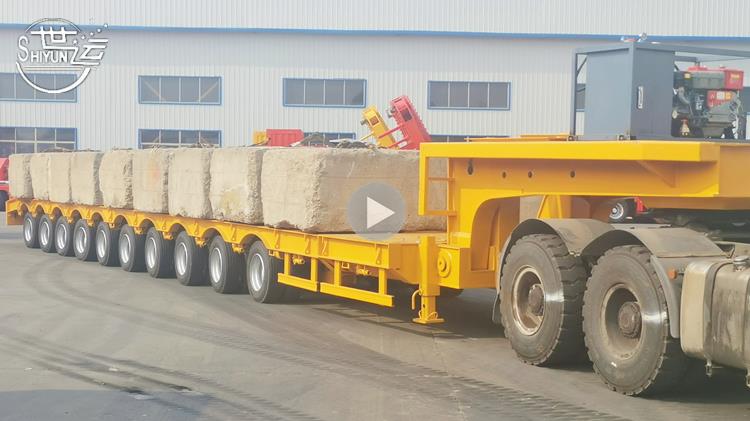

Shiyun Vehicle 10 Axle Wind Turbine Tower Transport Trailer
Shiyun Vehicle 9 Axle Wind Turbine Tower Transport Trailer with Capacity 150 Ton
Shiyun Vehicle Wind Turbine Tower Transport Test Video
Platform: With radian for different diameters tank bodies

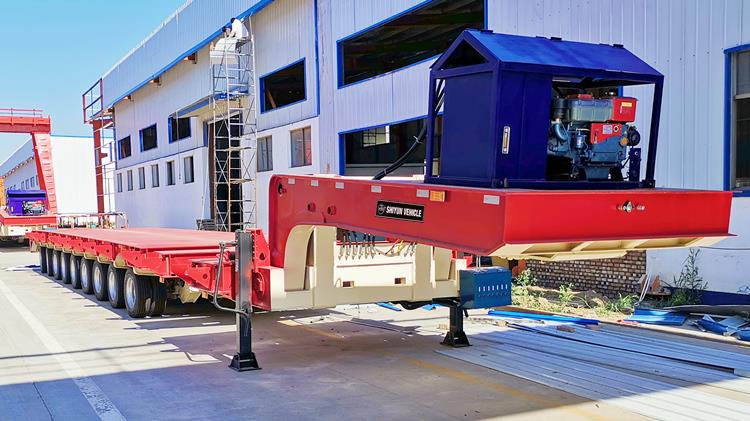

Gooseneck: Normal or hydraulic lifting gooseneck optional
Axles: hydraulic steering optional

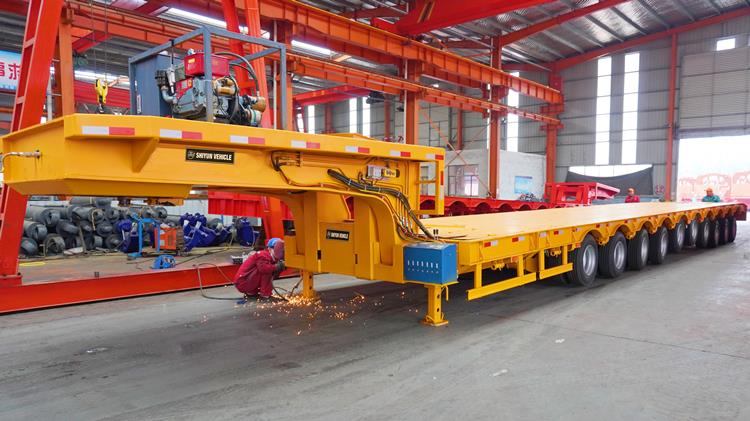

Power station: for controlling the hydraulic systems
Braking system: Double air chamber, brake valve; ABS optional
Electrical: LED light, 7 ways,24V
Painting: Blasting and clean rust,1 coat of prime painting, 2 coat of finish paint
Platform weight: 15Tons
Tire: 9.00R20*24Pcs
Axle distance: 1500mm
Bogie distance: 580/1760mm
Tire specification: 215/75R17.5
Rim specification: 6.00 (with reinforced rim)
Steering system: Hydro Mechanical steering
Suspension: Hydraulic suspension with three supports
Brake system: Dual line circuit
Loaded speed: 20km/h
Deadweight: 27000kg
Max. turn radius: 12410mm inside/ 43245mm outside

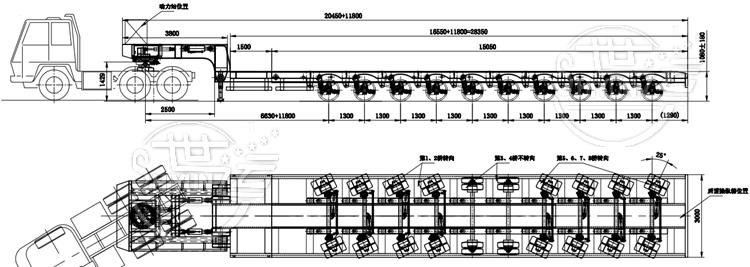

Drawing of 10 Axle Wind Turbine Tower Transport Trailer
Drawing of 9 Axle Wind Turbine Tower Transport Trailer

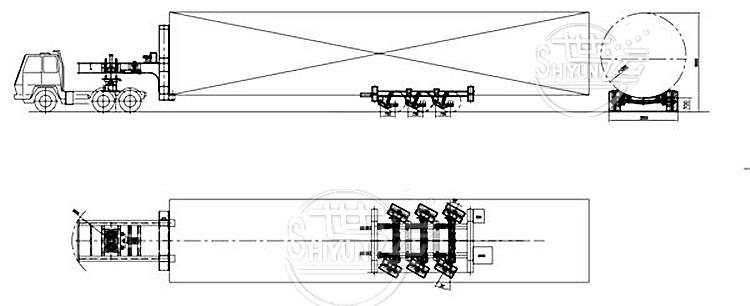

Drawing of 3 Axle Wind Tower Trailer

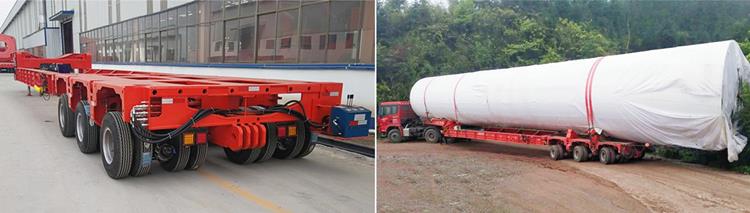

Wind turbine tower transport is also called wind turbine tower transport trailer. Mainly used for the transportation of large cylindrical heavy towers such as wind power towers, distillation tanks, wind turbines, etc.; ultra-low load-bearing platform, beam-through structure, reverse-mounted suspension chassis and multi-axle design can ensure tower transportation vehicles Has good safety and stability.
Shiyun designs and produces Tower Section Semi Trailer for hauling 30 meters to 35 meter wind towers. After the mounting process, the wind tower mounting plate holes are precision machines to fit perfectly no matter what band or size, greatly reducing damage to the paint on the tower section. It has proven to be the most efficient, lightest-weight option for customers.
Tower transport model
A wind turbine equipment is generally equipped with 4 towers, the weight and size of the 1-4 towers are different, and the number of axles of the model used is also different. Tower transport vehicles use multi-bridge concave special plates, generally 5-11 bridges.
Tower secondary transfer model
When the wind turbine tower transport trailer cannot reach the designated position due to the influence of road traffic conditions, it is necessary to use the tower secondary transfer vehicle. This model is a special special vehicle plate. The rear wheel is equipped with a hydraulic steering system and has a short wheelbase and turns. Features of small radius.
Wind Turbine Tower Transport Trailer for Sale Price
The body of wind turbine tower transport trailer is made of steel, and the main plane of the frame and cargo platform is low, which ensures the stability of transportation and is suitable for carrying various construction machinery, large equipment and steel. All parts and assemblies are assembled in the reverse order of disassembly, and the screws should be tightened according to the specified torque. It is the promoter of market release, and culture is the core of the composition.

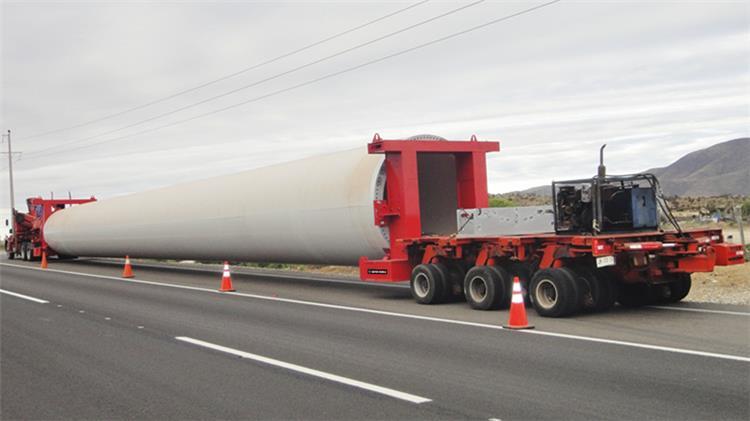

Because the wind turbine blades are longer and the length of the blades is not the same, the semi-trailers that transport the blades of the wind turbine are designed to be retractable. When the wind turbine tower transport trailer transports blades of different lengths, according to the blades Load size to adjust the length of the semi-trailer. After transporting the blades, when the semi-trailer returns, in order to facilitate the operation, the semi-trailer frame must be retracted, so the length of the wind tower trailer must be adjusted frequently.
The existing wind tower trailer only uses the tractor to push and pull the front frame of the semi-trailer to adjust the length of the semi-trailer.
You have to realize how big wind turbine equipment is to get a feel for how important it is to select a freight provider that knows how to move this equipment properly. Wind turbine towers alone can range from 200-feet in height to more than 400-feet in height. Wind turbines have a diameter of 130 feet to 300 feet.
Wind turbine blades alone are more than 115-feet long and sit atop a tower that’s more than 200-feet in height. Most turbine towers average 280 feet. There are three blades to every wind turbine tower to create smooth wind motion.
Wind turbine blades are shipped similarly to wind turbine towers. All wind components are shipped using trucks and rail cars.
Transporting Wind Turbine Towers for Sale Price Manufacturer
Transporting Wind Turbine segments is a specialized operation. In addition to the complex and expensive segments, the route is usually difficult with the final destination in a challenging remote location. Legislation and regulations also make this type of transport highly specialized and demand both know-how and experience.
The wind energy sector is constantly changing as new developments evolve and require different trailer designs to transport the equipment.
The transportation of wind turbine segments falls into four categories. Namely, tower sections, blades, nacelle and the hub. We have made a selection here especially for you which trailers are suitable for which type of section.
Tower sections: The tower sections can be transported on various trailers and depend both on the weight and dimensions, View the trailers that are suitable for the various tower sections here.
Blades: Length is an important factor regarding transportation. View which trailers are suitable here.
Nacelle: The nacelle is often the heaviest segment of the wind turbine as it contains the generator and gearbox, It goes without saying weight is the decisive factor here. View which trailers are suitable here.
Hub: When transporting the hub both weight and dimension are important as the hub can be heavy and large in dimension. The flexibility of the trailer is often essential here. View which trailers are suitable here.
