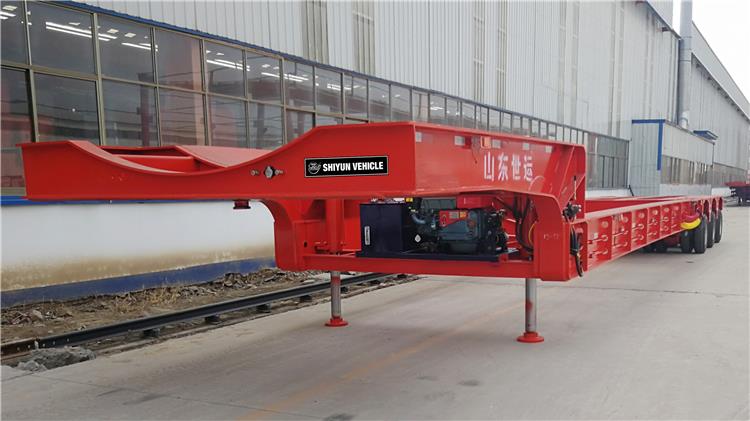

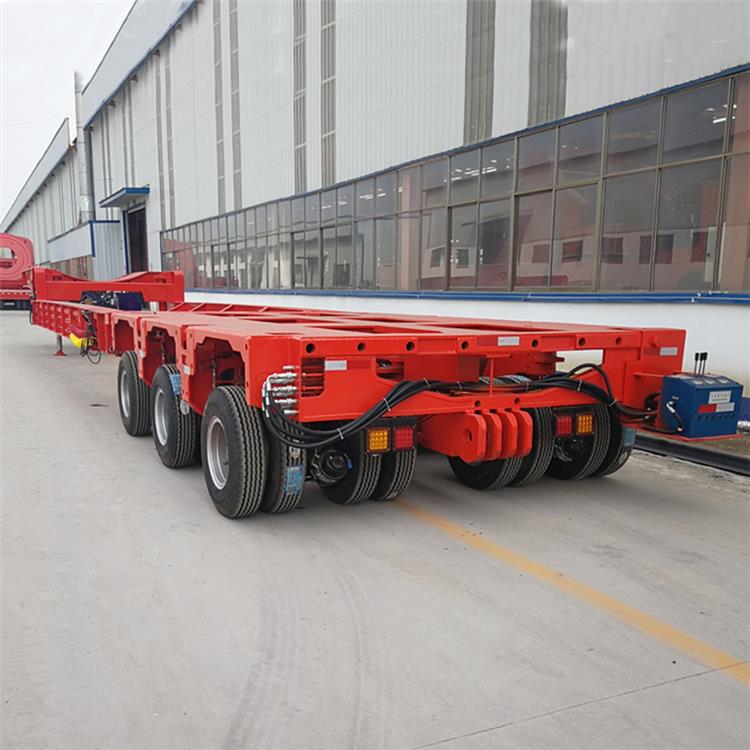

3 Line 6 Axle Tower Blade Trailers for Sale
3 Line 6 Axle Tower Blade Trailers for Sale

3 Line 6 Axle Tower Blade Trailers for Sale

34000 USD

Send Inquiry, Get Accurate Quotation



There are two portions of this trailer: one is the adapter side with a gooseneck connect with the fifth wheel. The second one is the dolly trailer. Can transport oversized tanks diameters over than 5meters.

SKU: 3 Line 6 Axle Tower Blade Trailers for Sale
MPN: MT940403
Brand: SHIYUN

Product Description:

3 Line 6 Axle Tower Blade Trailers for Sale as an ECO and renewable energy, will be more and more popular in the world. The wind tower transportation generation construction field is also prosperous in proportion. In the wind power industry, we mainly have wind power nacelle, wind turbine blades, wind tower section to complete the industrial chain. Shiyun provides all types of transportation solutions for the wide power industry use.

There is no length limitation for transporting windmill tower sections. The length can be adjustable according to the wind tower length. The Axles are steering, it can be normal hydraulic steering or modular lifting steering.

There are two portions of this trailer: one is the adapter side with a gooseneck connect with the fifth wheel. The second one is the dolly trailer. Can transport oversized tanks diameters over than 5meters.

3 Line 6 Axle Tower Blade Trailers for Sale with Best Price

3 Line 6 Axle Tower Blade Trailers for Sale with Best Price

Wind Tower Blade Trailer for Sale

Wind Tower Blade Trailer for Sale



Specification:

Platform: With radian for different diameters tank bodies

Gooseneck: Normal or hydraulic lifting gooseneck optional

Axles: 5line 10 axle, hydraulic steering optional

Power station: for controlling the hydraulic systems

Braking system: Double air chamber, brake valve; ABS optional

Electrical: LED light, 7 ways,24V

Painting: Blasting and clean rust,1 coat of prime painting, 2 coat of finish paint

Platform weight: 15Tons

Tire: 9.00R20*24Pcs

Axle distance: 1500mm

Bogie distance: 580/1760mm

Tire specification: 215/75R17.5

Rim specification: 6.00 (with reinforced rim)

Steering system: Hydro Mechanical steering

Suspension: Hydraulic suspension with three supports

Brake system: Dual line circuit

Loaded speed: 20km/h

Deadweight: 27000kg

Max. turn radius: 12410mm inside/ 43245mm outside



Advantage:

1. It is equal to a normal lowbed trailer with arc shape platform.

2. The width, length can be extended.

3. Axles can be normal or steering, modular hydraulic lifting lowbed trailer optional.

4. The platform height can be made very low. It can be 350mm-900mm from the ground.

5. Can transport oversized tanks diameters over than 5meters.
