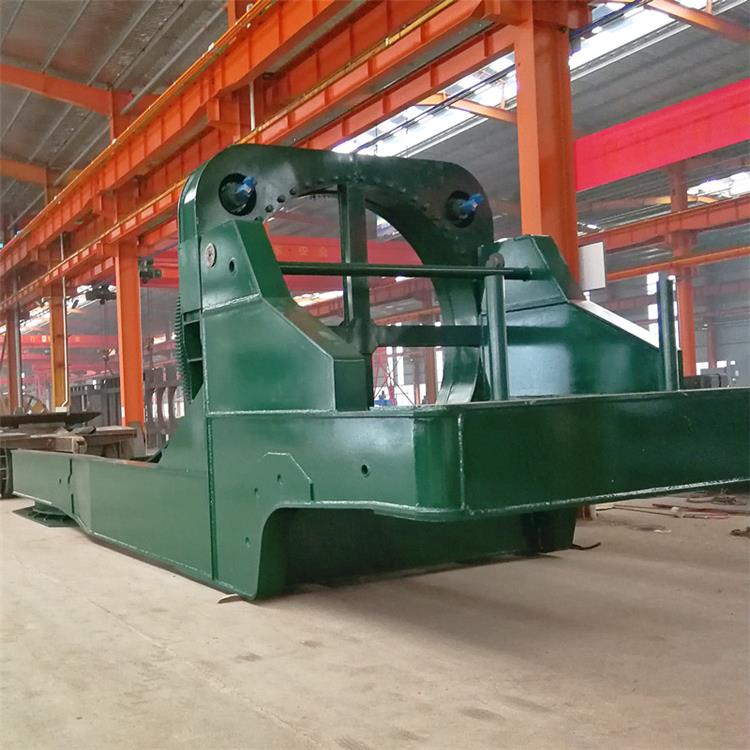

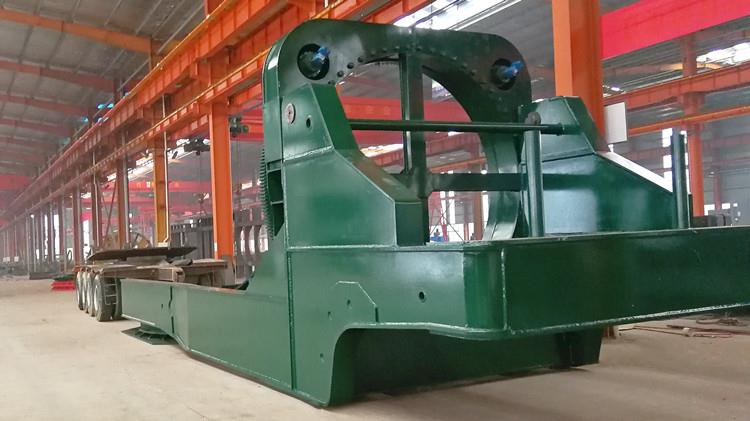

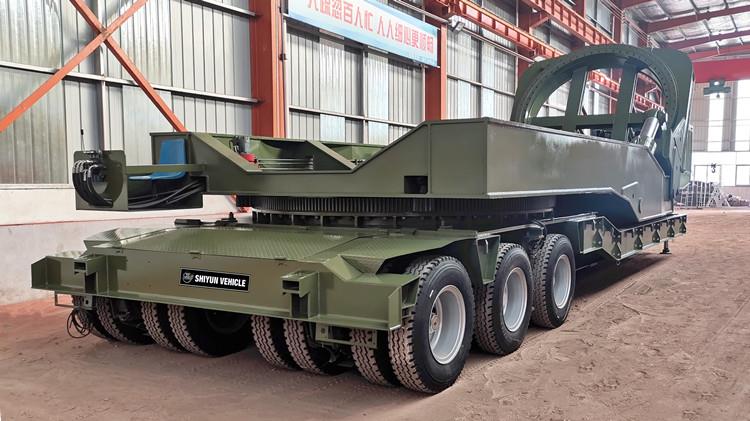

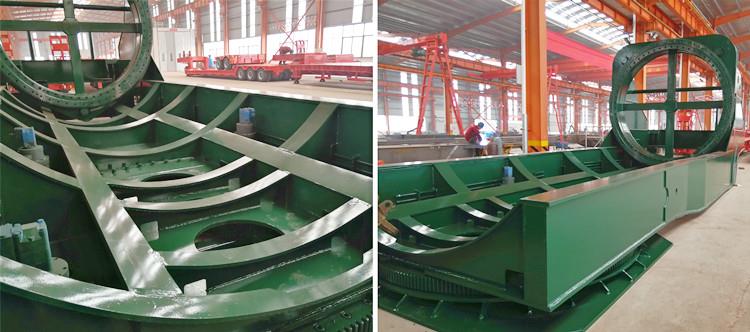

Windmill blade transport adaptor for windmill blade transport can lift the wind turbine blades, it usually transport the wind turbine blades to the top of the mountain.
In the wind power industry, Shiyun vehicle mainly have wind power nacelle, wind turbine blades, wind tower section, etc. to complete industrial chain. Shiyun vehicle provide all types transportation solutions for the wide power industry use.
Comparing with extendable wind blade trailer ,The Windmill blade transport adaptor can raise, swing, and rotate the blades. It can avoid various obstacles such as trees, mountains, and wires on the way, effectively solve the problem of wind blade transportation in mountain areas, and directly grasp the wind blades by the hydraulic power station. In the case of high wind, the blades can rotate 360 degrees to avoid the wind, and participate in the balance through the counterweight to ensure transportation safety.
This model is a separate windmill blade transport adaptor, you can match your own modular trailer
Windmill Blade Transport Adaptor for Sale - Shiyun Vehicle
Windmill Blade Transport Adaptor for Sale - Shiyun Vehicle
Brand: Shiyun Windmill blade transport adaptor
Dimension: 11090mm*3700mm*5000mm
Applicable blade: 80m, 121-156 model windmill blades
Loading capacity: 23.5 Tons
Max rotation angle: 360°
Lifting cylinder: cylinder diameter 280mm Lift angle 0-55
Hydraulic station: 31KW four-cylinder diesel engine
1. Max rotation angle of the rotor blade 360°
2. Max rotation angle of the platform 360°
3. Angle of inclination up to 60°
4. Radio remote control with display of wind speed, transverse gradient, blade position, ballast position
5. Windmill blade transport adaptor can combine with modular semi trailer and heavy duty low bed trailer
6. Self-balancing counterweight ensure the transport stability and safety
7. The maximum transport length of the blade is more than 75m
