Removable Gooseneck Trailer transport manufacturer that provides machinery for our agricultural, excavating, mining, and contractor clients. A double drop gooseneck trailer is often referred to as a "detach," because it has a gooseneck that detaches and moves away from the trailer's lower deck. This makes it simple for the detachable gooseneck drivers to secure your equipment and safely get it to the next destination.
Shiyun -removable detach trailer gooseneck manufacturers can make the 2/3/4 axles hydraulic detachable gooseneck lowboy trailers and 3 lines 6 axles heavy duty rgn lowboy trailer, the capacity of 60/80/100/120/150 ton removable gooseneck trailer.
To meet your transport needs and your local regulations, we can customize different configuration removable gooseneck lowboy trailers for you.

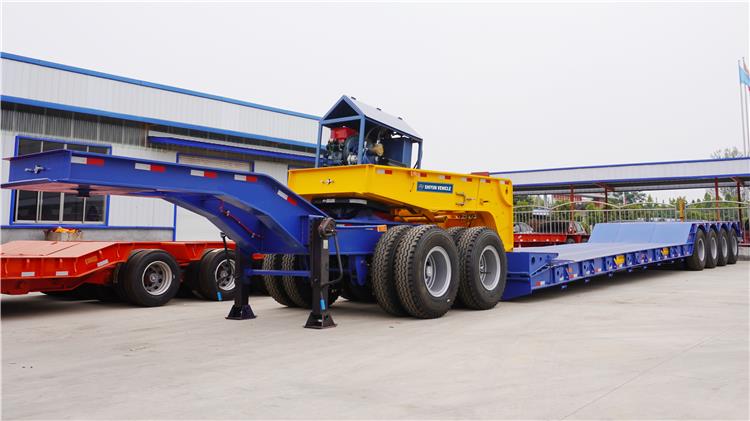

3 Axle Detachable Gooseneck Trailer for Sale with Best Price - Shiyun Vehicle

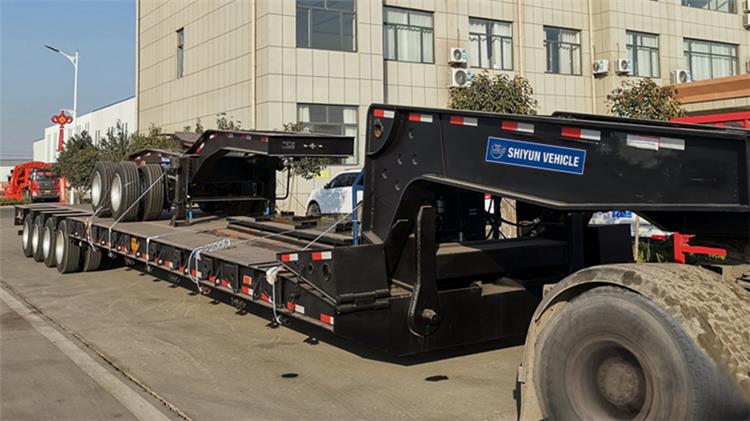

4 Axle Detachable Gooseneck Trailer with Dolly
3 Line 6 Axle Detachable Gooseneck Trailer for Sale with Best Price
Loading capacity(T): 50-150T
Axle: 13T/16T, FUWA / BPW / Shiyun Brand
Rim: 8.0-20 or 900*22.5
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension or air suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Tare weight: About 9.5-19T
Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.
Bottom Platform: 5mm thick, checkered plate
Hydraulic cylinder: 12KW diesel engine with hydraulic station
ABS: Optional
Valve: WABCO valve
Light: LED light (especially intended for overseas markets)
Voltage: 24V
Toolbox: 1 set
Painting: Polyurethane paint, with long service life, and avoid the vehicle get rust
Shipping terms: Transported by the bulk carrier in a RORO or 40HQ container

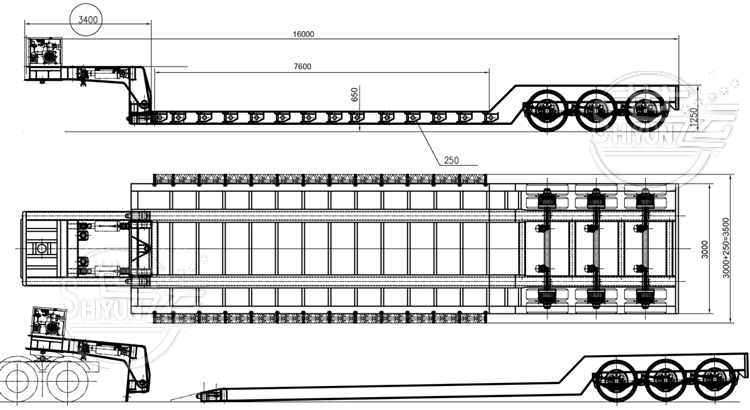

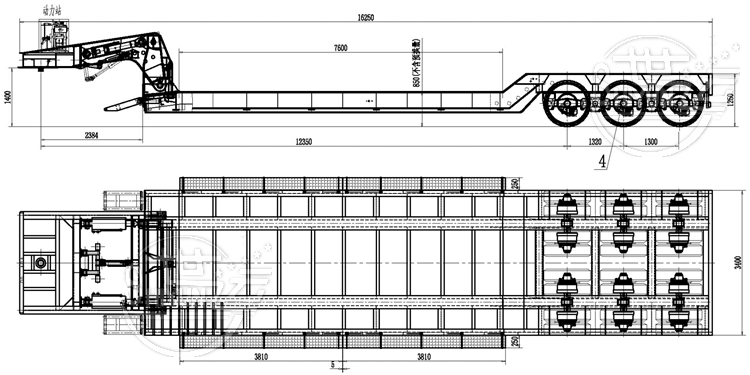

Drawing of 3 Axle 60 Ton Detachable Gooseneck Trailer
Drawing of 3 Line 6 Axle 120 Ton Detachable Gooseneck Trailer

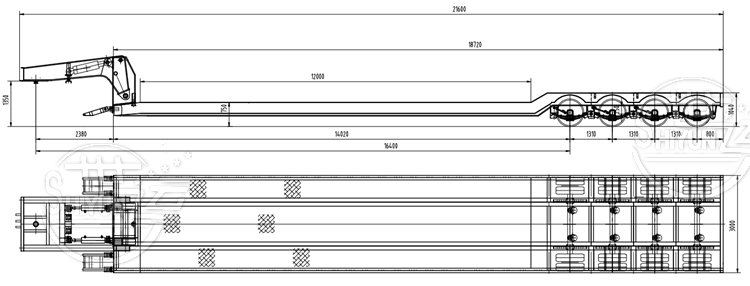

Drawing of 4 Axle Gooseneck Trailer Price
Shiyun lowboy trailer is with high tensile structure steel with tensile and durable construction. The lower working platform height for the transport of high and voluminous loads. with high loading capacity, which will not happen to the deformation when carrying heavy equipment.
The main beam adopts submerged arc welding technology, improve the loading capacity and meet load requirements on bad road condition. The suspension ensures its have high loading capacity, and increases its capacity to twisting forces, shock, bump.
The degree of automation is high. And it also has high control procedures and alignment in connecting, Only one person can operate it. When the hydraulic gooseneck is removed from the trailer body, the trailer bed can touch the ground, makes loading and unloading more safe and efficient.
For those of you who have shipped large equipment in the past, you know how technical the process can be. That is why the removable gooseneck trailer was created. With a detachable gooseneck trailer you can hold heavy equipment lower to the ground and avoid issues with height permits and constraints.
Another benefit of the detachable gooseneck trailer is the “removable” gooseneck. This allows the front of the trailer to detach. After the front of the gooseneck has been detached, a large piece of equipment like a tractor or excavator can be driven directly onto the trailer. After the equipment is loaded, the gooseneck is reattached and the equipment can be secured in place. This simplifies the process of loading and unloading.

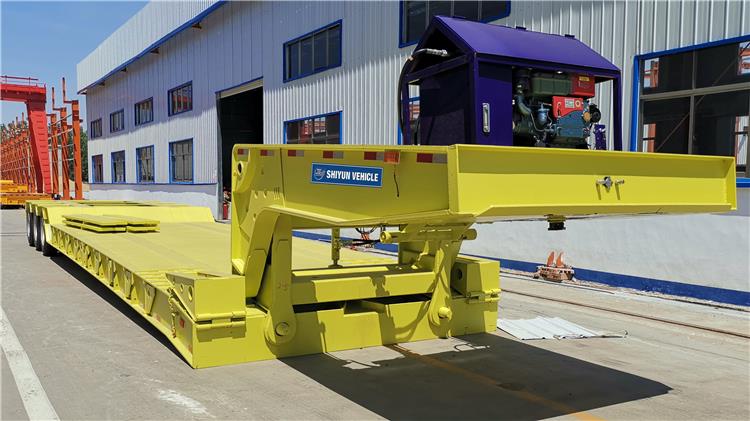

Shipment of 4 Axle Removable Detachable Gooseneck Trailer
The detachable gooseneck trailer can be used to separate the gooseneck from the trailer and realize the contact between the front end of the vehicle and the ground. After the cargo is loaded, the semi-trailer can be restored to the original transportation state in time.
In the process of disassembling the gooseneck, the front lead of the detachable gooseneck trailer must be separated from the traction seat. In the actual operation process, the front part of the gooseneck may slip off, and as the gooseneck is continuously lowered, the bottom corner of the front trailer will gradually approach the ground.
After the trailer travels for a period of time, the weight of the trailer will be reduced, and part of the weight will be shared by the front end of the semi-trailer wheel for support, but most of the gooseneck is in the cantilever state, which can make the front end of the trailer tend to extend outward.
After the disassembly is completed, the retaining ring should be removed and allowed to move forward until the retaining ring can be connected with the connecting plate, so that the pin can be completely separated from the trailer. Then, place the retaining ring at the rear of the trailer and connect it with the steel belt.
At this time, the rotating handle should be retracted as much as possible and kept in a clockwise direction. The tractor can then move backward, and the gooseneck structure can slide back and forth on the traction plane. Under continuous rotation operation, it can make The convex part of the tooth shape is smoothly separated from the groove
In the process of the tractor moving forward, the gooseneck and the tractor seat are connected to each other. For this reason, the tractor at this time is separated from the gooseneck semi-trailer, and the detachable gooseneck trailer is constantly running. Will tend to tilt.

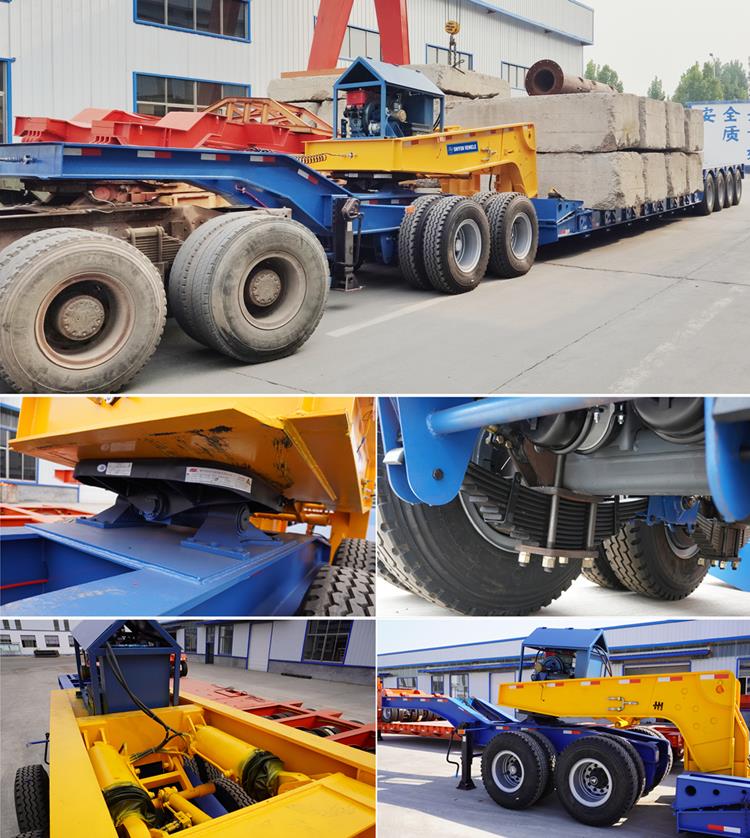

Details of Detachable Gooseneck Trailer Manufacturer
After completing the loading of the detachable gooseneck trailer, the above operations can be reversed and repeated. The tractor can continuously pull the gooseneck back, so that the gooseneck finally stops at the front end of the trailer.
At this time, the rocker handle of the trailer can be inserted into the spring position and is continuously bounced to the top position. The tractor can continuously move to the rear, prompting the guide slope on the upper part of the semi-trailer to push the gooseneck boss to the standard position.
With the continuous backward movement of the protruding rod, the bolt can rise from the rear and gradually bulge. The raised rocker can always be in a prescribed position, and the gooseneck and the trailer are orthogonally connected as a whole.
Subsequently, the gooseneck will be separated from the traction seat and moved forward by tractor. With the continuous movement of the tractor, the gooseneck will always repeatedly bulge along the inclined surface. As a result, the sliding of the front end of the gooseneck can prompt the gooseneck to always rotate and move around the protruding rod area.
During the whole process, the tooth-shaped protrusion will be inserted into the slot again. The gooseneck can be aligned with the upper, lower, inner and outer sides of the trailer by continuously tilting upwards, downwards, or both inside and outside, thereby improving the work efficiency of the gooseneck trailer.
When the gooseneck is in a suspended state, the retaining ring can be manually connected to the front end of the warping shaft, and finally inserted into the extension part of the warping shaft.
When the gooseneck is continuously lowered, the continuous movement of the arch of the connecting plate will cause the pin to warp and bulge. To do this, the connecting plate will be slid back to a fixed position. Eventually, the tractor continues to retreat, and the traction pin is connected to the traction saddle again. The whole process can make the detachable gooseneck low-bed trailer load more cargo and run at an appropriate height.
