Goldhofer SPMT
Goldhofer SPMT

Goldhofer SPMT

145000 USD

Send Inquiry, Get Accurate Quotation



Shiyun 250 Ton Goldhofer SPMT for transport oversize and over weight freights that split apart series hydraulic multi axle trailer that can be assembled into weight from 45 tons to 2200 tons of various series.

SKU: Goldhofer SPMT
MPN: MT940507
Brand: Shiyun

Product Description:

Shiyun vehicle is a professional China heavy transport trailer manufacture. For spmt trailer ,we can manufacture different models and can be fully compatible with Original Goldhofer THP/SL, Nicolas MDED, COMETTO 51M and SCHEUERLE InterCombi.

The basis of the spmt solutions is the hydraulically-supported pendulum axle. It allows for an even distribution of the payload across several axles. Uneven ground conditions can be compensated for up to 650 mm. Nevertheless, the hydraulic pendulum axle is very road-friendly. The all-wheel steering with large steering angles guarantees the best possible manoeuvrability of modular heavy-duty vehicles.

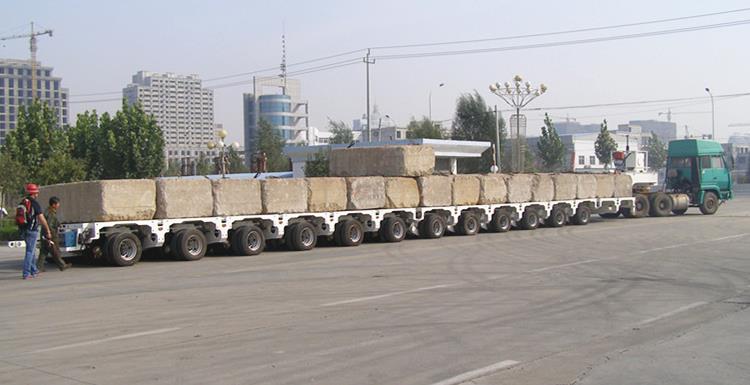

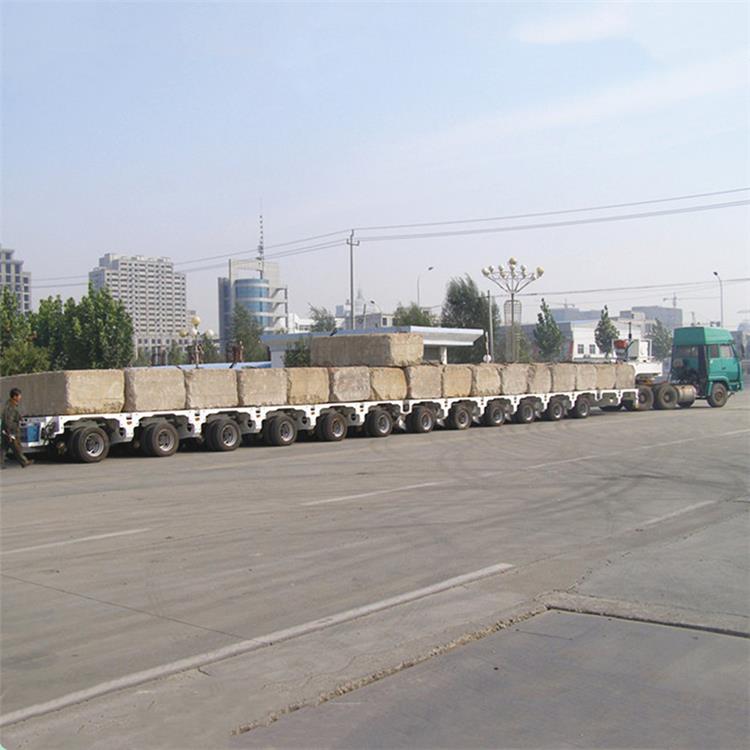

Goldhofer SPMT (self propelled modular transporter) Manufacturers

Goldhofer SPMT (self propelled modular transporter) Manufacturers

Goldhofer SPMT (self propelled modular transporter) Manufacturers



Specification:

Name: Goldhofer SPMT (self propelled modular transporter)

Usage: Transport bridge and heavy duty cargo

Max Payload: 250 tons

Tires: Tri-angle, Double star or Bridgestone optional

Axis-line: 12 units

Suspension type: Hydraulic lifting steering

Landing gear: Front and rear hydraulic support cylinder

King pin: 2.00 or 3.5 inch bolt-in king pin

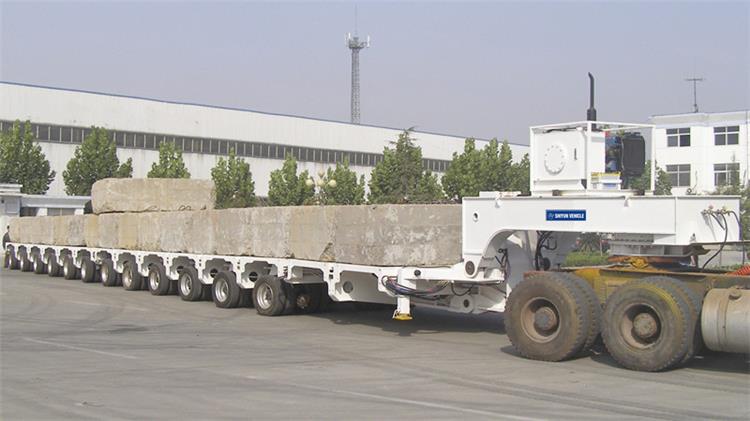

modular trailer for sale

Different types of self propelled modular transporter steering structures:

Mechanical steering axles

When gooseneck steering, the system will control the rods and support arm to steer the tires. This is the type to go for on economic grounds and again to enjoy a long service life.

It comes with low maintenance costs and most importantly, it is highly available.

Hydraulic steering axles

Self propelled modular transporter offers a larger steering angle of up to 65°. Most importantly, it has a higher capacity compared to other options out there.
