60m Wind Power Trailer Mounted on 3 Line 6 Axle Low Bed can lift the wind turbine blades, it usually transport the wind turbine blades to the top of the mountain.
In the wind power industry, Shiyun vehicle mainly have wind power nacelle, wind turbine blades, wind tower section, etc. to complete industrial chain. Shiyun vehicle provide all types transportation solutions for the wide power industry use.
This large wind blade adaptor trailer is very popular in Vietnam and other countries. transporting 121-155 model blades. The special Wind Power Trailer can lift the blades through hydraulic control and rotate itself 360 degrees during driving, avoiding various obstacles during transportation (mountain slopes, trees, houses, bridges, tunnels, etc.), which can greatly reduce the blades.

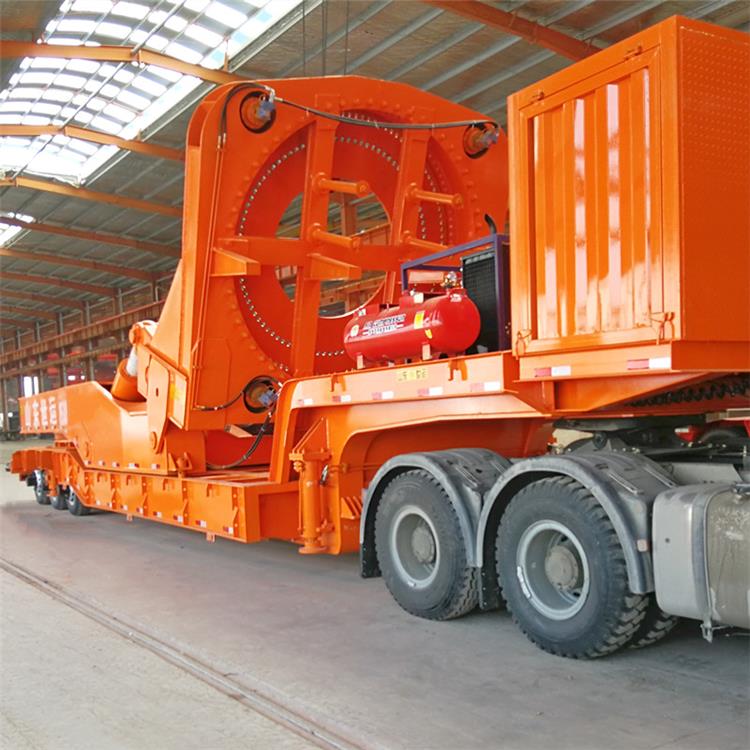

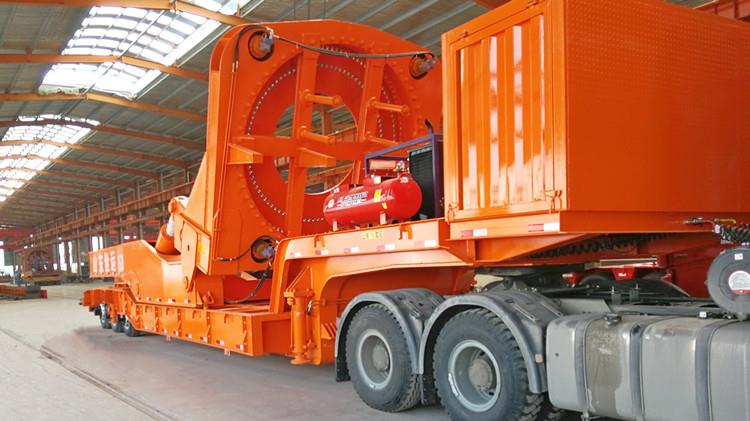

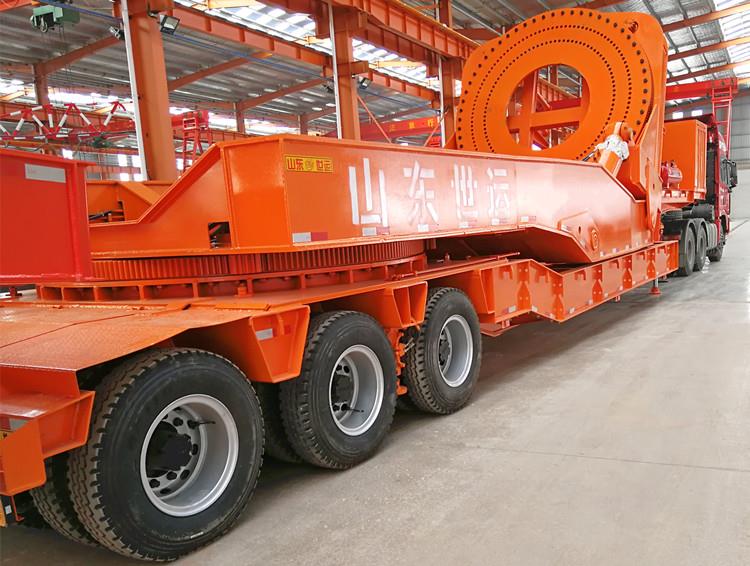

60m Wind Power Trailer Blade Lifter with Heavy Haul Lowbed - Shiyun Vehicle
Brand: Shiyun 60m Wind Power Trailer Blade Lifter with Heavy Haul Lowbed
Dimension: 16250mm*3700mm*5000mm
Applicable blade: 60m-76m, 121-156 model windmill blades
Loading capacity: 23.5 Tons
Axle: 3 lines 6 axles
Tires: 24 units
Max rotation angle: 360°
Lifting cylinder: cylinder diameter 280mm Lift angle 0-55
Gooseneck with an active platform: 1m
Hydraulic station: 31KW four-cylinder diesel engine
Landing gear: Front and rear hydraulic support cylinder
King pin: 2.00 or 3.5 inch bolt-in king pin
1. Confirm whether the cargo (blade) is in good condition
2. Confirm whether the tooling tools are complete
3. The nut must be tightened when the blade is loaded
4. When the lifting equipment is in operation, watch hands under the tip of the blade and pay attention to intercepting passing vehicles and air barriers
5. When the car comes to park, the tip of the blade must be raised to more than 5 meters and avoid the owner's route
6. All hydraulic valves of the tooling should be closed after parking
7. There must be a special vehicle escort during the operation of the vehicle
