Shiyun Tri Axle Telescopic Blade Trailer for Sale in Hai Phong Vietnam
This time, it is a new customer of ours who bought the 3 axle telescopic blade trailer. In the past two years, wind blade trailers have been very popular at home and abroad, because many countries have built wind farms, which are generally located on mountains with high winds, and transporting wind turbine blades is also a thorny issue. The telescopic blade trailer is a good solution to the transportation of wind turbine blades on ordinary roads. Of course, there are special vehicles for transporting wind turebine blades to the top of the mountain. This customer from Vietnam also considered this issue, but because it was the first time he bought a large vehicle from China, he bought a telescopic blade trailer first, and wanted to see how the quality is.

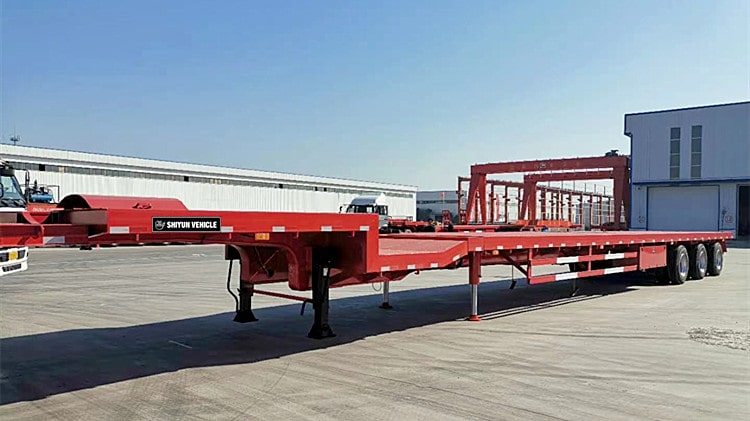

Shiyun Tri Axle Telescopic Blade Trailer for Sale in Hai Phong Vietnam
These can be used to transport both wind blades and the tower. This is the kind of trailer that you need if you want to handle the different kinds of loads in your operations. Its design and construction are meant to take care of these needs.
Its structure comprises: A Gooseneck, A steering mechanism, An extendable beam, The tail platform.
The goose-neck provides a connecting point of the trailer to the truck. It is designed to lift up and down to meet the different height of the 5th wheel of a truck. When the truck steers, goose-neck can pass the signal, and the trailer starts to steer.
The steering system includes a steering function for the rear axles to help trailer get through a curved road due to the 62 m length of the trailer.
There are three steering structure configurations namely: hydraulic bogies, turntable steering and axle steering.
The extendable beam feature is designed to allow for elongation to cater for different transportation needs. Due to the overall length of the trailer needed in this section, tough and strong materials with a yield strength of at least 460 MPa is used.
This makes sure that the beam doesn’t sag during operations. At this section, the telescopic blade trailer can be adjusted to the desired length to take up the task at hand.
The tail platform forms the rear section of the trailer. It can either be a folding or pulling platform configuration. Therefore, users can choose a telescopic trailer based on these tail platform configurations.

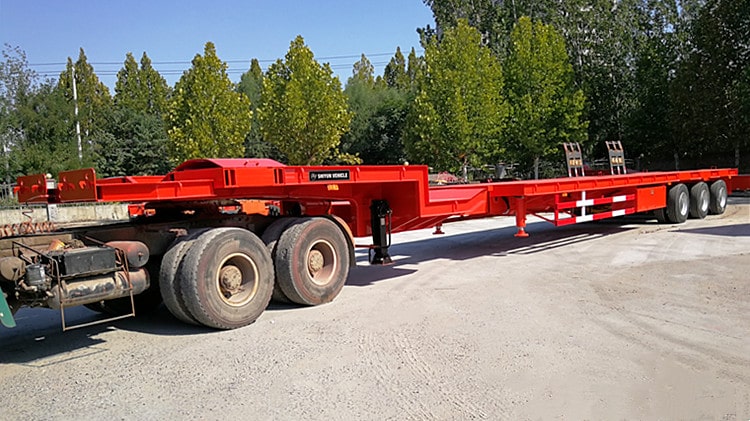

Shiyun Tri Axle Telescopic Blade Trailer for Sale
It’s easy to use. The trailer comes in a simple design that is easy to use and operate either hands-on or remotely. Loading and offloading cargo are made safe and simple for operators to manage the operations in an effortless manner.
It can transport other kinds of oversized cargoes, not only the blades and tower. Therefore, the user can put the telescopic blade trailer into many other uses other than for transporting wind turbine blades.
Reliable and Efficient. Constructed of high yield strength material, telescopic trailers are reliable in terms of safety and general transportation needs.
Owing to its ability to carry both wind turbine blades and windmill towers loads, it gives the user and efficient option for transportation.

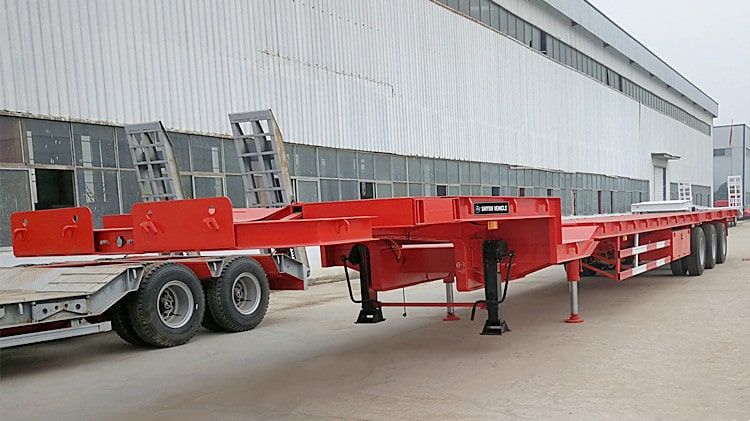

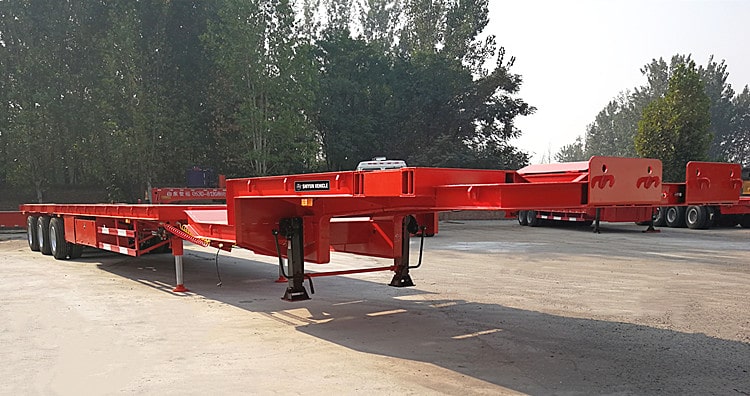

Shiyun Tri Axle Telescopic Blade Trailer
Wind blade transport semi trailers include ordinary telescopic blade trailer, axial wind blade trailers, and lifting wind blade transport semi-trailers.
①Ordinary extendable wind blade trailers are a bit similar to lowbed transport vehicles, but the girder adopts a buckle box design. The girder is extended to adjust the length of the vehicle to adapt to the transportation of wind blades of different lengths. It is understood that the current domestic pumping The extendable-type wind blade transport semi-trailer can be up to 62 meters long.
②The big difference between the axial fan transport semi-trailer and the ordinary extendable wind blade transport is that the chassis adopts a hydraulic axis design, so that the vane truck has a lower cargo deck and more flexible steering.
③Lifting blade transport semi trailer refers to a blade transport vehicle equipped with a hydraulic lifting device, which is mainly aimed at the transportation of blades in mountainous areas. In the case of flat roads, the blades are transported flat. In the case of extremely small turning radius in mountainous areas, raise the height of the items carried by the lifting device (usually 5-10 meters), shorten the length of the vehicle and bypass obstacles.
