Adaptor for Wind Turbine Blade Transportation for Sale in Qui Nhon

A customer from Vietnam customized an Adaptor for Wind Turbine Blade Transportation. This special vehicle is mainly used for the transportation of wind turbine blades on mountain roads. This customer saw the Adaptor for Wind Turbine Blade Transportation of the Shiyun brand locally, and then contacted our company's salesperson after being recommended, indicating that he only wanted to buy an adaptor, and after asking the customer's requirements for size, color, etc., The factory began to make the frame, and after finishing the coloring, it sent the customer photos. The customer felt very satisfied and was finally ready to ship.

Adaptor for Wind Turbine Blade Transportation for Sale in Qui Nhon

The length of the wind blade is at least 30 meters or more, so the above-mentioned transportation method cannot be used in mountainous areas. What should I do? Recently, we saw a semi-trailer specially designed to transport wind blades, which solves the problem of transportation in the mountainous area of ​​wind blades. It is different from the transportation on the car, which is similar to holding a big sword in hand. , The wind blade can be moved up and down, left and right in different directions, so as to avoid various obstacles on the mountain road to meet the needs of wind blade transportation.

On the fixed base of the blades, the low center of gravity ensures safety

The Adaptor for Wind Turbine Blade Transportation is different from the picture above. The rearward setting makes the length of this wind blade semi-trailer shorter, which is conducive to driving in mountainous areas; the operation by dedicated personnel is conducive to improving safety.

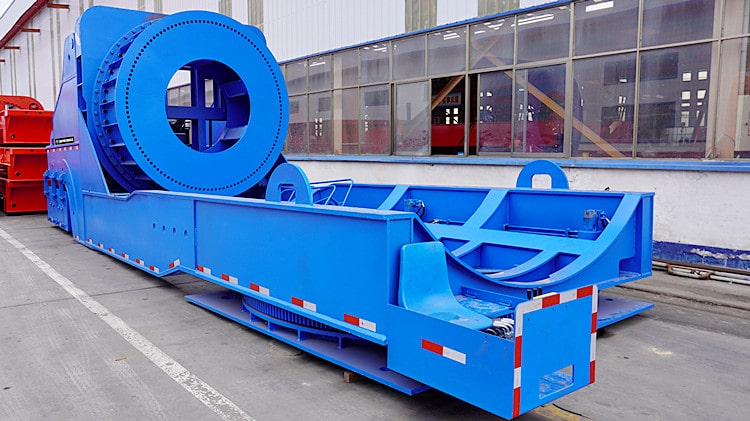

Adaptor for Wind Turbine Blade Transportation

Different from the conventional vane transport vehicle, this adaptor for wind turbine blade transportation has a very short length, which is also to satisfy that the vehicle can normally run on mountain roads. You can think of it as a crane, with its walking part on the bottom and a turret on the top. The wind blades are like the boom of this crane.

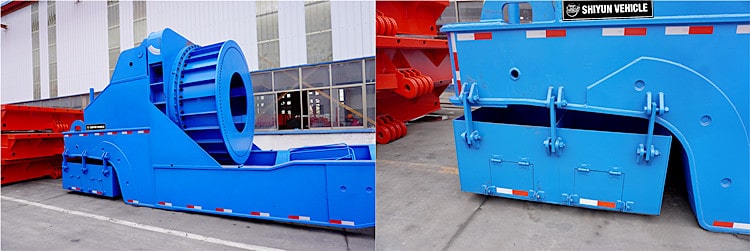

The wind blades to be transported are fixed on the vehicle by bolts, and the wind blades and the base are firmly integrated, so that the wind blades can move up and down, left and right during the transportation process without danger. The up and down displacement of the base is realized by the oil cylinders arranged on both sides, which can achieve a lifting range of 0-60 degrees. In order to ensure that the center of gravity of the wind blade is unstable when it is displaced, the back of the base can prevent the counterweight to achieve For the balance of the entire vehicle, the counterweight can be flexibly added according to the weight of the wind blade. The trailer is equipped with 275/70R22.5 size tires, the purpose is to reduce the height of the entire vehicle, not only more convenient when loading and unloading, the lower height also ensures the stability of the vehicle during operation.

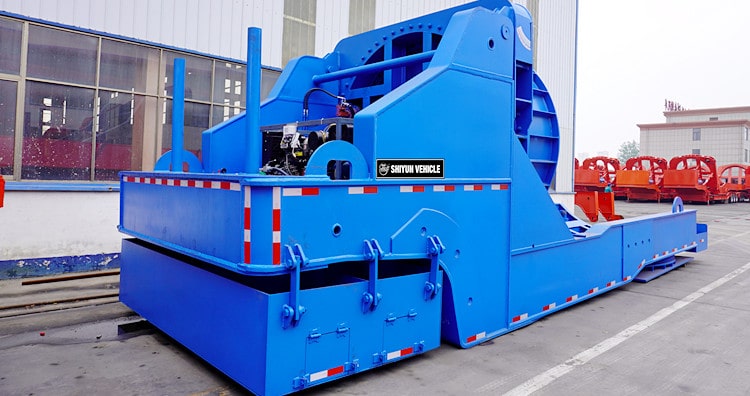

Adaptor for Wind Turbine Blade Transportation for Sale

Inspired by cranes, air conditioning improves comfort

The turret is fixed on the trailer, and the hydraulic motor drives the gear fixed under the turret to realize the rotation of the entire base. Theoretically, the turret can rotate 360 ​​degrees.

If the wind blade is so long, the force generated by the front wind is very terrifying, and if it is held high, it is very likely to overturn the transport vehicle. To solve this problem, the base can rotate along the axis of the blade under the premise of satisfying the lifting requirement, so that the windward side of the blade is always on the side with the smallest area.

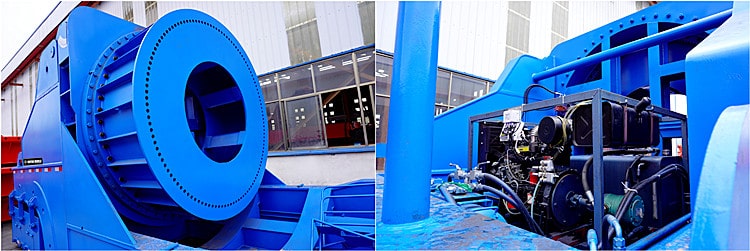

A diesel engine is mounted on the trailer, and the hydraulic pump directly connected with the rotating shaft provides the power source for the upper part.

The square welded oil tank is used to store hydraulic oil and can provide all heat dissipation capabilities, so there is no radiator installed. The upper part comes with a battery and a fuel tank, and the layout of the pipeline is dazzling. It would be better if it can be straightened out. The hydraulic motor that realizes the rotation of the turret and the fuel tank that provides grain for the diesel engine. The entire upper part is operated by a dedicated person, and the operating principle is basically similar to that of a crane. In order to improve the comfort of the operator, an air conditioner is installed in the operating room.
